ShowScript Panels

ShowScript Panels provide a flexible way to build graphical user interfaces (GUIs) for show control. They are designed to be lightweight, web‑based, and easy to configure, allowing you to control your show from virtually any device.

Overview

ShowScript includes a built‑in web server that exposes control panels through a standard web browser. This means:

Any modern web browser can be used as a control surface
Panels can run on PCs, tablets, HMIs, or embedded systems
Devices only need network access to the ShowScript server IP

Panels are defined as simple JSON files and rendered dynamically by the embedded web server.

Panel Concept

A panel is essentially a grid of interactive buttons:

You define the number of rows and columns
Buttons can be placed freely within the grid
Each button can execute ShowScript code in real time

You can create as many panels as needed, each tailored to a specific operator role or show task.

Buttons and Actions

Each button (referred to as a knob in the configuration) supports the following properties:

Title – Text displayed on the button
Background color – Button background color
Text color – Button label color
Action – ShowScript code executed when the button is pressed

The action uses the same syntax as normal ShowScript code. For example, to start a sequence named seqTest, the button action would be:

seqTest.start();

This code is evaluated in real time when the button is clicked.

Enabling the Panel Web Server

The panel web server is embedded within the ShowScript API driver. To enable it, initialize the API driver in your ShowScript project:

api = new Drivers.API(8080);

This starts the embedded web server on port 8080.

Panel Directory Structure

Panels are loaded from a dedicated directory in your ShowScript project:

In your project root, create a directory named:

panel/

This directory will contain all panel definition files.

Creating Your First Panel

To create the default panel:

Inside the panel directory, create a file named:

default.json

Add the following content:

{
    "title": "<b>Test Panel</b>",
    "backgroundColor": "#222",
    "grid": {
        "rows": 4,
        "columns": 4
    },
    "knobs": [
        {
            "title": "Test Button",
            "backgroundColor": "#00AA00",
            "color": "black",
            "onClick": "seqTest.start();"
        }
    ]
}

Save the file and start the ShowScript engine.
Open a web browser and navigate to:

http://localhost:8080/panel

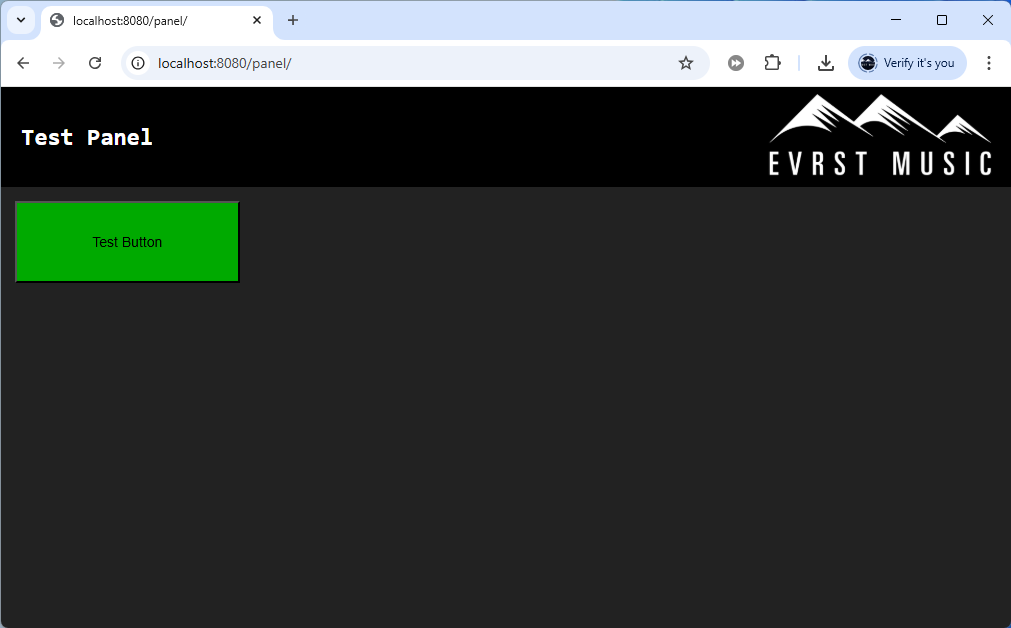

The default panel will now be displayed.

Multiple Panels

You can define as many panels as required. Each panel is represented by a separate JSON file.

For example, if you create:

panel/anotherpanel.json

You can access it at:

http://localhost:8080/panel/anotherpanel

This makes it easy to create dedicated panels for different operators, devices, or show segments.

Summary

ShowScript Panels offer a powerful yet simple way to build custom control interfaces:

Web‑based and device‑agnostic
Fully configurable via JSON
Real‑time execution of ShowScript code
Unlimited panels and layouts

They are an ideal solution for building intuitive and reliable show control interfaces.
